Zebra ZD510 Health: ZPL guide
<img src="/guides/zebra/zd510_health.jpg" alt="Zebra ZD510 Health" width="360" loading="lazy" />
Zebra ZD510 Health: ZPL guide

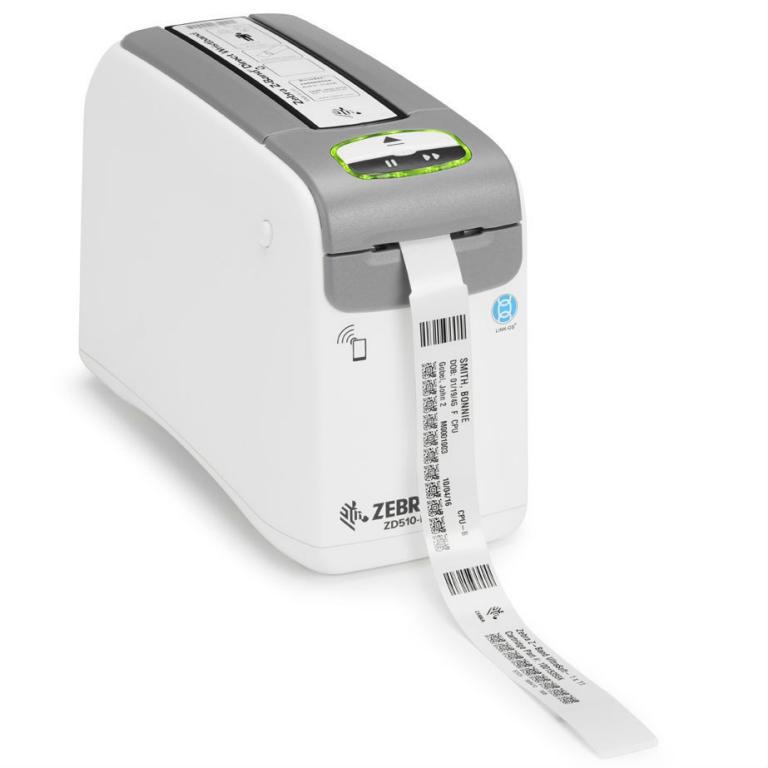

The Zebra ZD510 Health is a desktop printer with ZPL support. Below you will find the most important specifications for designing and printing labels as well as tools to preview your ZPL. The Healthcare edition of the ZD510 features an antimicrobial housing.
Key specifications
| Model | Zebra ZD510 Health |
|---|---|
| Resolution | 203 DPI / 300 DPI |
| Maximum print width | 104 mm (4.09") @ 203 DPI |
| Type | Desktop |
| Technology | Direct thermal and thermal transfer |
| Print speed | 6 ips / 152 mm/s (203 DPI); 4.5 ips / 114 mm/s (300 DPI) |
| Firmware / languages | ZPL II; EPL 2; XML |
| Connectivity | USB; Ethernet (options: Wi-Fi, Bluetooth) |
Designing labels for the Zebra ZD510 Health
Create your ZPL by adjusting the DPI to the printer and choosing a width within the specified maximum. Preview it in the viewer to avoid clipping or wasted material.
| DPI | Maximum width | ^PW value |
|---|---|---|
| --- | --- | --- |
| 203 DPI / 300 DPI | 104 mm | ^PW831 |
^PW sets the printable width in dots. Use the value that matches the actual DPI of your printer.

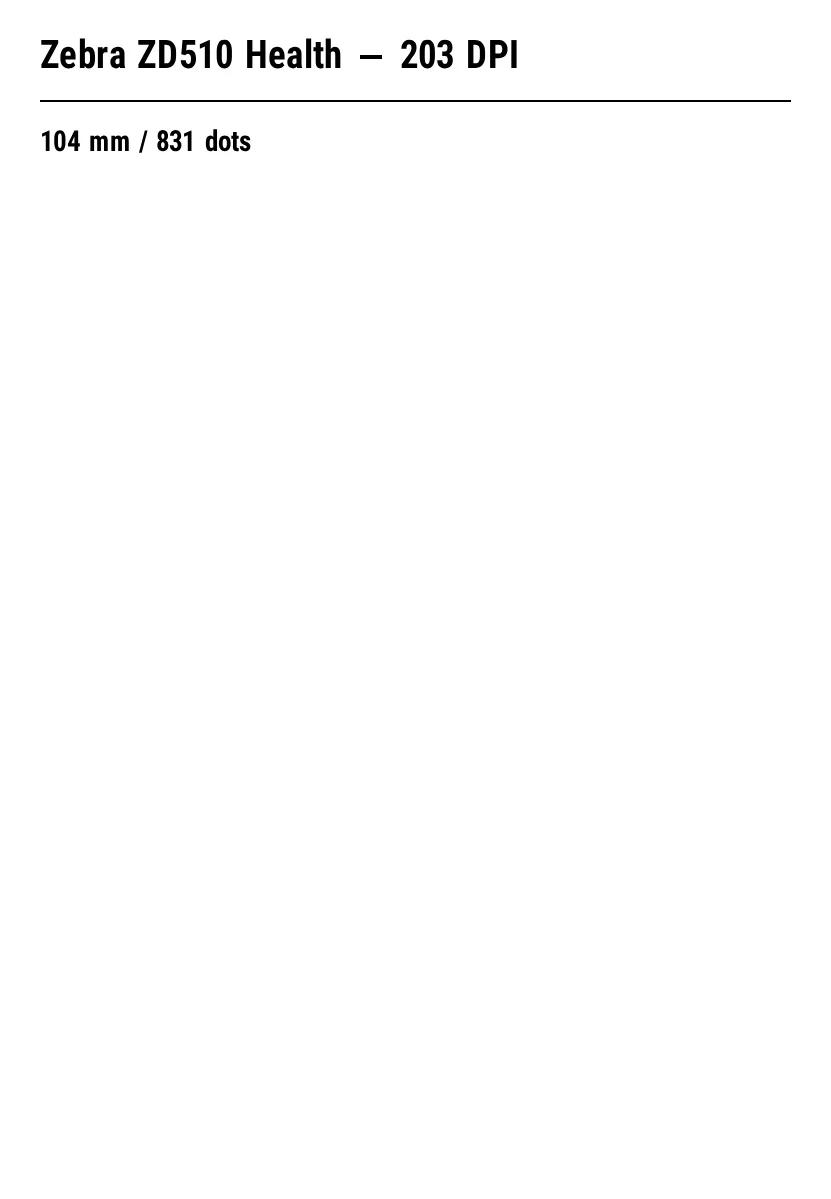

^XA
^PW831
^LL1199
^FO40,40^A0N,38,38^FDZebra ZD510 Health - 203 DPI^FS
^FO40,100^GB751,2,2^FS
^FO40,130^A0N,28,28^FD104 mm / 831 dots^FS
^XZ
Official source
Technical data from the Zebra ZD510 Health specification sheet.
- [View the Zebra source](https://www.zebra.com/us/en/products/spec-sheets/printers/desktop/zd510.html)
Frequently asked questions
What resolution (DPI) does the Zebra ZD510 Health have?
See the specification table: it lists the available DPI for this model.
Can I preview my ZPL for the Zebra ZD510 Health without printing?
Yes. Paste your code into the ZPL viewer and set the Zebra ZD510 Health's DPI to see the label exactly as printed.
