Zebra ZD620: ZPL guide

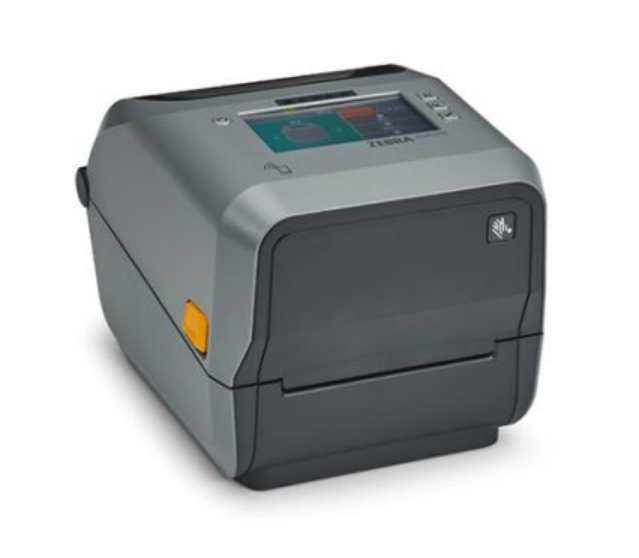

The Zebra ZD620 is a desktop printer with ZPL support. Below you will find the most important specifications for designing and printing labels as well as tools to preview your ZPL.
Key specifications
| Model | Zebra ZD620 |
|---|---|
| Resolution | 203 DPI / 300 DPI |
| Maximum print width | 168 mm (6.6") @ 203 DPI |
| Type | Desktop |
| Technology | Direct thermal and thermal transfer |
| Print speed | 6 ips / 152 mm/s (203 DPI); 3 ips / 76 mm/s (300 DPI) |
| Firmware / languages | ZPL II; EPL 2; XML |
| Connectivity | USB; Ethernet (options: Wi-Fi, Bluetooth) |
Designing labels for the Zebra ZD620
Create your ZPL by adjusting the DPI to the printer and choosing a width within the specified maximum. Preview it in the viewer to avoid clipping or wasted material.
| DPI | Maximum width | ^PW value |
|---|---|---|
| --- | --- | --- |
| 203 DPI / 300 DPI | 168 mm | ^PW1343 |
^PW sets the printable width in dots. Use the value that matches the actual DPI of your printer.
^XA
^PW1343
^LL1199
^FO40,40^A0N,38,38^FDZebra ZD620 - 203 DPI^FS
^FO40,100^GB1263,2,2^FS
^FO40,130^A0N,28,28^FD168 mm / 1343 dots^FS
^XZ
Official source
Technical data from the Zebra ZD620 specification sheet.
- [View the Zebra source](https://www.zebra.com/us/en/products/spec-sheets/printers/desktop/zd620.html)
Frequently asked questions
What resolution (DPI) does the Zebra ZD620 have?
See the specification table: it lists the available DPI for this model.
Can I preview my ZPL for the Zebra ZD620 without printing?
Yes. Paste your code into the ZPL viewer and set the Zebra ZD620's DPI to see the label exactly as printed.
