Zebra ZD620 Health: ZPL guide

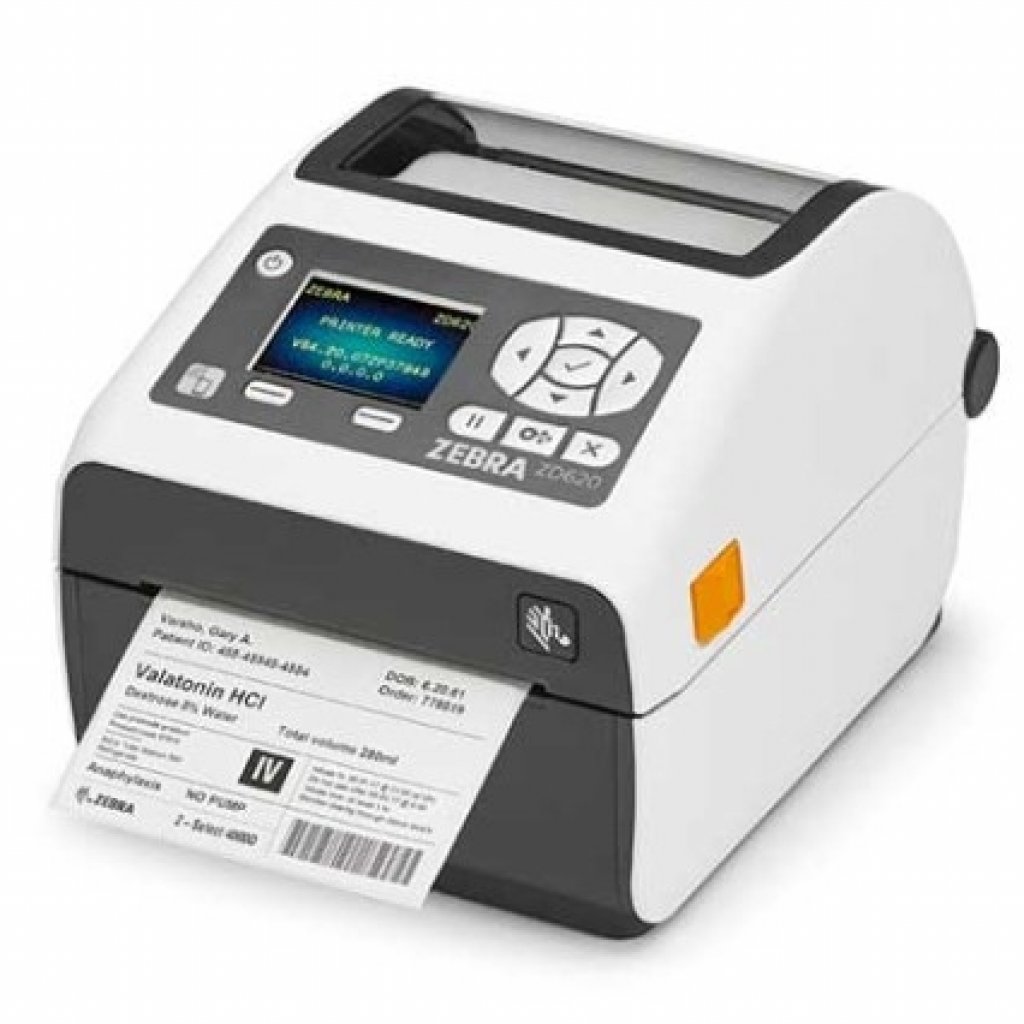

The Zebra ZD620 Health is a desktop printer with ZPL support. Below you will find the most important specifications for designing and printing labels as well as tools to preview your ZPL. The Healthcare edition of the ZD620 features an antimicrobial housing.
Key specifications
| Model | Zebra ZD620 Health |
|---|---|
| Resolution | 203 DPI / 300 DPI |
| Maximum print width | 168 mm (6.6") @ 203 DPI |
| Type | Desktop |
| Technology | Direct thermal and thermal transfer |
| Print speed | 6 ips / 152 mm/s (203 DPI); 3 ips / 76 mm/s (300 DPI) |
| Firmware / languages | ZPL II; EPL 2; XML |
| Connectivity | USB; Ethernet (options: Wi-Fi, Bluetooth) |
Designing labels for the Zebra ZD620 Health
Create your ZPL by adjusting the DPI to the printer and choosing a width within the specified maximum. Preview it in the viewer to avoid clipping or wasted material.
| DPI | Maximum width | ^PW value |
|---|---|---|
| --- | --- | --- |
| 203 DPI / 300 DPI | 168 mm | ^PW1343 |
^PW sets the printable width in dots. Use the value that matches the actual DPI of your printer.
^XA
^PW1343
^LL1199
^FO40,40^A0N,38,38^FDZebra ZD620 Health - 203 DPI^FS
^FO40,100^GB1263,2,2^FS
^FO40,130^A0N,28,28^FD168 mm / 1343 dots^FS
^XZ
Official source
Technical data from the Zebra ZD620 Health specification sheet.
- [View the Zebra source](https://www.zebra.com/us/en/products/spec-sheets/printers/desktop/zd620.html)
Frequently asked questions
What resolution (DPI) does the Zebra ZD620 Health have?
See the specification table: it lists the available DPI for this model.
Can I preview my ZPL for the Zebra ZD620 Health without printing?
Yes. Paste your code into the ZPL viewer and set the Zebra ZD620 Health's DPI to see the label exactly as printed.
