Zebra ZQ630R & ZQ620R: ZPL guide

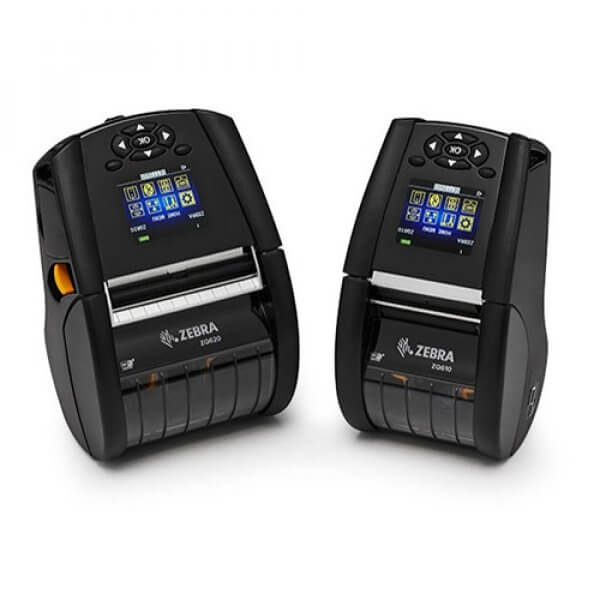

<img src="/guides/zebra/zq630r.jpg" alt="Zebra ZQ630R & ZQ620R" width="360" loading="lazy" />
Zebra ZQ630R & ZQ620R: ZPL guide
The Zebra ZQ630R & ZQ620R is a mobile printer with ZPL support. Below you will find the most important specifications for designing and printing labels as well as tools to preview your ZPL. The ring version of the ZQ630/ZQ620 for wrist-mounted use.
Key specifications
| Model | Zebra ZQ630R & ZQ620R |
|---|---|
| Resolution | 300 DPI (ZQ630R) / 203 DPI (ZQ620R) |
| Maximum print width | 104 mm (4.1") @ 203 DPI |
| Type | Mobile |
| Technology | Direct thermal |
| Print speed | 6 ips / 152 mm/s |
| Firmware / languages | ZPL II; CPCL |
| Connectivity | USB; Bluetooth (Wi-Fi optional) |
Designing labels for the Zebra ZQ630R & ZQ620R
Create your ZPL by adjusting the DPI to the printer and choosing a width within the specified maximum. Preview it in the viewer to avoid clipping or wasted material.
| DPI | Maximum width | ^PW value |
|---|---|---|
| --- | --- | --- |
| 300 DPI (ZQ630R) / 203 DPI (ZQ620R) | 104 mm | ^PW831 |
^PW sets the printable width in dots. Use the value that matches the actual DPI of your printer.
^XA
^PW831
^LL812
^FO40,40^A0N,38,38^FDZebra ZQ630R & ZQ620R - 300 DPI^FS
^FO40,100^GB751,2,2^FS
^FO40,130^A0N,28,28^FD104 mm / 831 dots^FS
^XZ
Official source
Technical data from the Zebra ZQ630R & ZQ620R specification sheet.
- [View the Zebra source](https://www.zebra.com/us/en/products/spec-sheets/printers/mobile/zq630r.html)
Frequently asked questions
What resolution (DPI) does the Zebra ZQ630R & ZQ620R have?
See the specification table: it lists the available DPI for this model.
Can I preview my ZPL for the Zebra ZQ630R & ZQ620R without printing?
Yes. Paste your code into the ZPL viewer and set the Zebra ZQ630R & ZQ620R's DPI to see the label exactly as printed.
